TMR Mixers

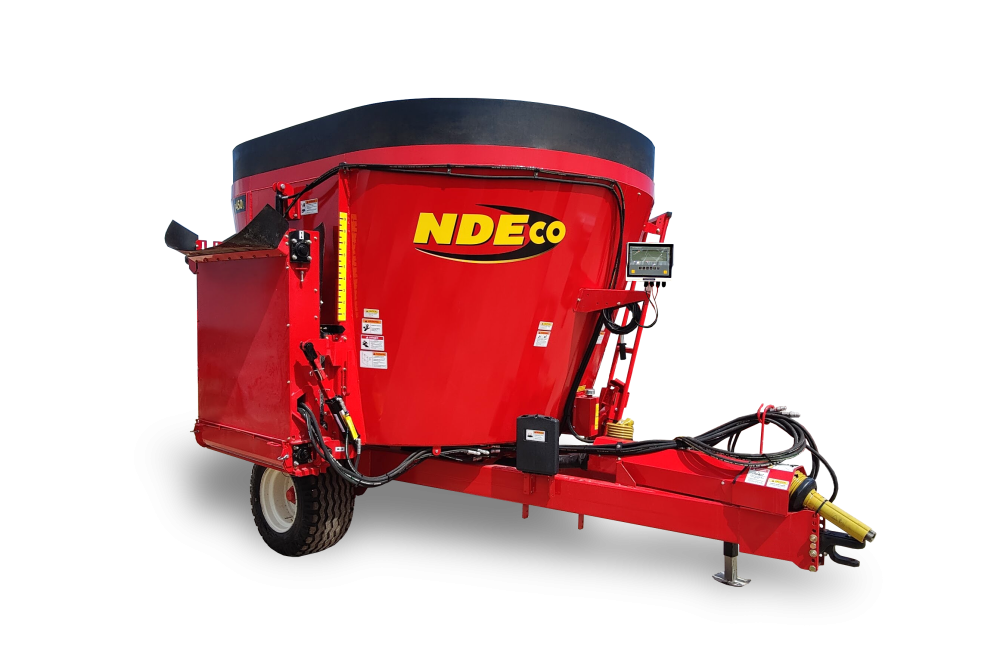

S Series

The S Series mixers are smaller economical feed mixers, yet highly configurable to suit your operation. It features a simple design with fewer moving parts. The A shaped frame allows for a tighter turning radius. Can be equipped with Tungsten Knives or either of our patented knives; the 24″ curved carbide insert knife or the serrated knife, giving you the ability to process large bales and long stem forages in this smaller mixer.

  • Side Door Discharge (RH, LH or both)
  • 330 to 575 Cubic Feet Capacity
  • 3′ to 9′ Side Door Conveyors
  • 24″ curved Carbide & Serrated Knives
  • Single Axle or Walking Tandem
  • 540 or 1000 RPM Multi-Stage Planetary Gearbox

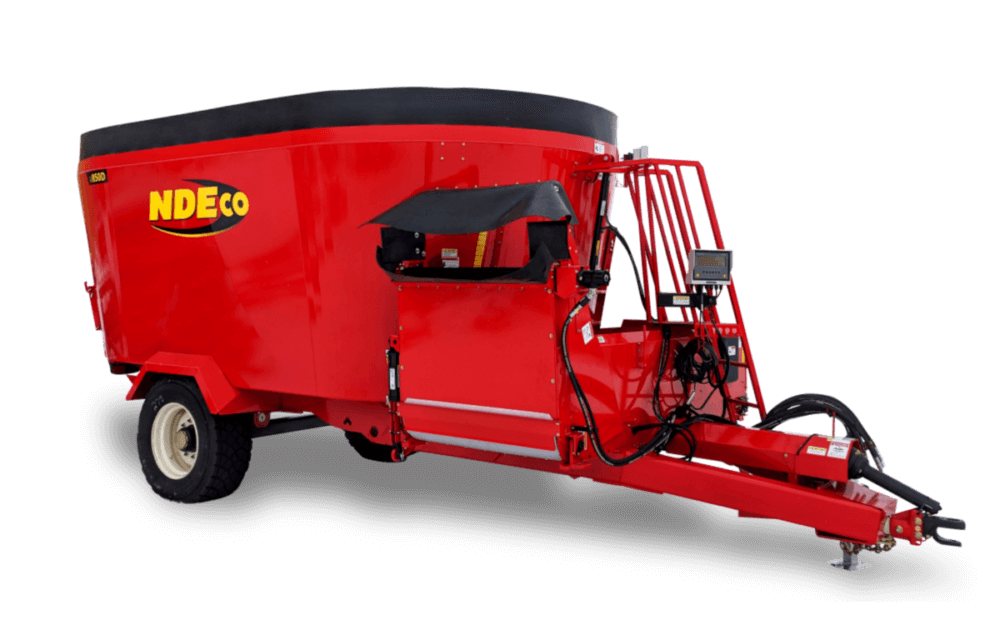

U Series

The U Series dual mixers feature a unibody construction, making it an economical and compact light-weight mixer. It features the same great mixing features such as the step floor design with overlapping augers for an even front to back mix and complete cleanout, along with a wide conveyor riding on a Fixed Single or Walking Tandem axle.

  • Front Door Discharge
  • 475 to 855 Cubic Feet Capacity
  • Economical Uni-body Design
  • 42″ wide Front Folding or Flat Conveyor
  • Fixed Single or Walking Tandem Axle
  • Super Singles and Flotation Tires
  • Heavy Duty Multi-Stage Planetary Gearboxes

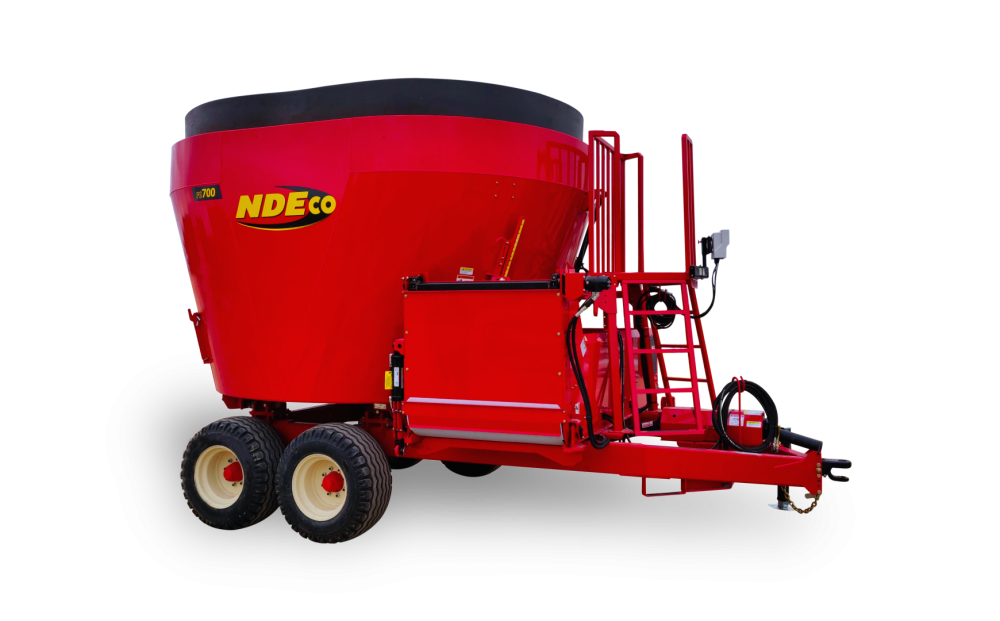

FS Series | Single

The FS Series Single Auger mixers are all-purpose feed mixers suitable for all types of operations. It features a full frame and 4-point scale system, front or side discharge with a wide array of conveyor options, and a number of available tire and axle configurations. This series offers our widest range of options and can truly be custom built to your needs.

  • Front/Side or Rear Door Discharge
  • 395 to 650 Cubic Feet Capacity
  • 42″ wide Suspended Front Conveyor (Folding or Flat 2-way), or up to 9′ long Side Conveyor
  • Industry leading 58″ Wide Door
  • Lateral Pivot/Walking Tandem
  • Heavy Duty Multi-Stage Planetary Gearbox

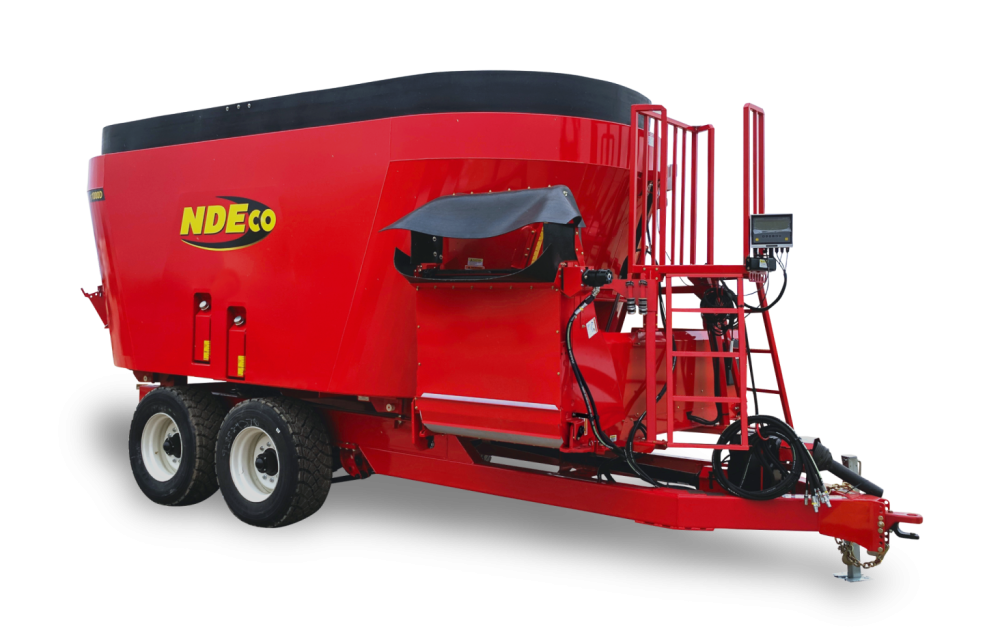

FS Series | Dual

The FS Series Dual Auger mixers are all-purpose feed mixers suitable for all types of operations. They features a full frame and 4-point scale system, front, side or rear discharge with a wide array of conveyor, tire and axle options. All dual auger mixers feature a step floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.

  • Front/Side or Rear Door Discharge
  • 715 to 1400 Cubic Feet Capacity
  • 42″ wide Suspended Front Conveyor (Folding or Flat 2-way), or up to 9′ long Side Conveyor
  • Industry leading 58″ Wide Door
  • Lateral Pivot/Walking Tandem/Spring Suspension
  • Step Floor Design/Overlapping Augers
  • Heavy Duty Multi-Stage Planetary Gearboxes

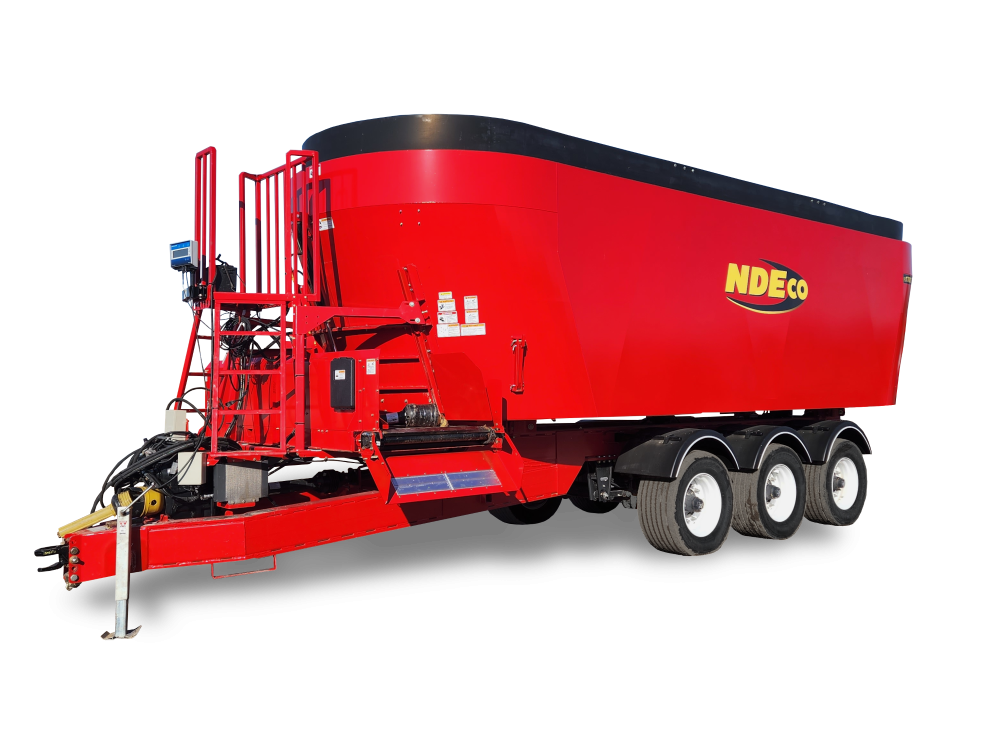

FS Series | Triple

The FS Series Triple Auger mixer is a large 1700 cubic foot mixer. It features front, side or rear discharges with a wide array of conveyor options. The mixer rides on a tandem walking beam or tridem spring or hydraulic height adjustable suspension with steer axles. The triple mixer features a step floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.

  • Front/Side or Rear Door Discharge
  • 1700 Cubic Feet Capacity
  • 42″ wide Suspended Front Conveyor (Folding or Flat 2-way), or up to 9′ long Side Conveyor
  • Industry leading 58″ Wide Door
  • Tandem Walking Beam or Tridem Suspensions
  • Step Floor Design/Overlapping Augers
  • Heavy Duty Multi-Stage Planetary Gearboxes

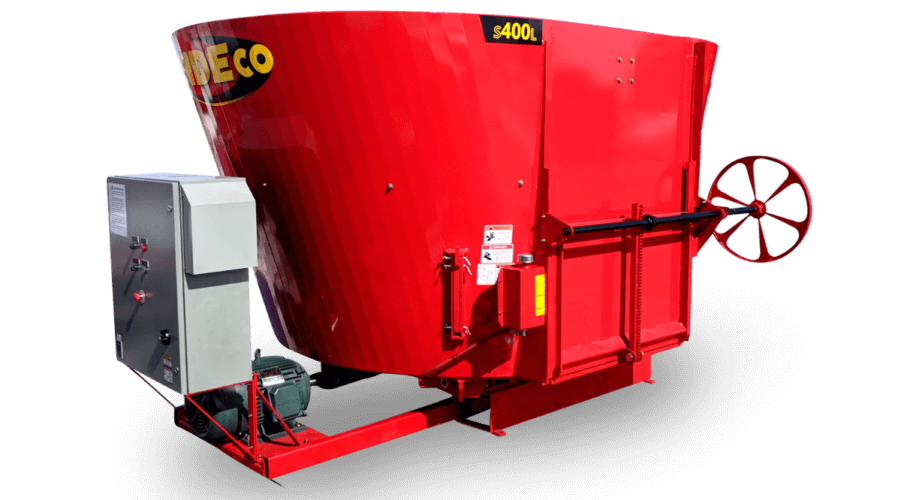

Stationary

All S and FS series mixers are available in a stationary configuration. Displayed unit is an S400 model with the following specifications:

  • Planetary geared for a direct drive
  • 30hp 3 phase Leeson motor 1750rpm
  • Benshaw VFD with 3 operating speeds

Stationary Vertical Mixer

MODEL(S):
V-MIX 400, V-MIX 575, V-MIX 700, V-MIX 900HD

Includes hydraulic door, manual door, door with electric motor, rubber extension, conveyor on right/left side, discharge conveyor on both sides.

V-MX 2.0 Mobile Mixers

MODEL(S):
V-MIX 400, V-MIX 575, V-MIX 700, V-MIX 900HD

Mixes a wide variety of feed including large round bales, square, baleage or dry. Versatile enough to handle any kind of recipe and was designed to accommodate any future requirements.

Fatmix Series

MODEL(S):
V-MIX FATMIX 485, V-MIX FATMIX 930, V-MIX FATMIX 1130

Unit can cut and mix a wide variety of products including large round hay bales, square, coated or dry. Its low profile designed with vertical walls and a larger floor than the V-Mix series offers to easily mix and chop several big bales of hay at the same time to prepare a quality TMR.

Mobile Four-Auger Mixer

MODEL(S):
MW210, MW270, MW325, MW375, MW450

On the mobile TMR mixer, the discharge system features a fold-up conveyor and an hydraulically powered door to regulate the flow of feed from the tractor seat. Capacity ranges from 210 to 450 sq. ft.

VRotor Reel Mixer

MODEL(S):
6100, 6120, 8100

An efficient mixing system capable of providing the most thorough TMR available without destroying structural fiber in the diet. A sturdy machine, wear resistant and capable of cutting and mixing long stem hay without destroying the overall structure of the feed.
